contact@kvpengineering.com - GST NO. : 24AROPP3737C1ZR
| Business Type | Manufacturer, Supplier, Trader |
| Material | En41 B MUSCO Make, Bimetalic |
| Finishing | Polished |
| Application | Plastic Making Machine |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details

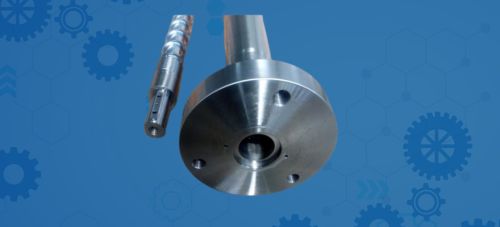

We specialize in the manufacturing and supply of a comprehensive range of the finest quality Single Barrels. Utilizing advanced technologies and machinery, coupled with high-grade raw materials, our products are highly regarded for their smooth finishing, resistance to corrosion, and robust construction. Rigorously checked and tested on various required parameters by our experienced professionals, we are proud to offer these precision-engineered products that meet industry quality standards.
Our facility is equipped with a deep hole drilling/boring machine for manufacturing barrels with diameters ranging from 14mm to 300mm and lengths up to 5 meters. We also have honing operations available for internal diameters ranging from 14mm to 300mm and lengths up to 5 meters. Additionally, bimetallic barrels are available upon request.
RANGE – dia14 mm to dia180 mm up to 5000 mm length.
TECHNICAL SPECIFICATION
- Base Material-38CrMoAlA(JIS SACM645); Cr12MOV(JIS SKD-11) ; 4Cr5MoSiV1(JIS SKD-61) ; 42CrMo(AISI 4140)
- Barrel manufacture from EN -41B Nitro alloy Steel (Musco make>
- Barrel is nitride hardened; skin hardness maintains up to 63 – 67 HRC
- High Plasticizing performance and throughput
- Useful life and efficiency
